      >   PRODUCT   >   Solid State Relay

    SSR-□□DA□

    Inquire Now

    ● A Bidirectional Controlled Silicon Output,Zero  Voltage Open,Zero Current Switching

    ● Between Input Circuit and Output Circuit Have  Optical Isolation.

    ● Solation Voltage between Input and Output is 2500V

    ● Output of the Power Metal-oxide Field Effect Transistor is Very Low On-resistance.

    ● Input Signal Compatible with TTL Logic Circuits.

    ● Between Input Circuit and Output Circuit Have  Transformer Isolation.

    ● LED Indicated the Working State.

    ● With Security Cover.



    PRODUCT DETAILS

    • Specifications
    • Technical Data

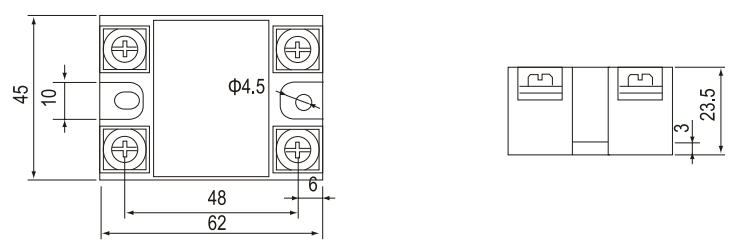

    • Dimensions

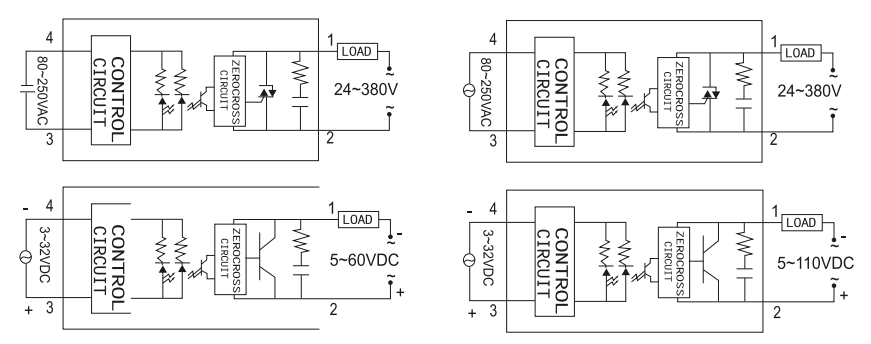

    • Wiring
    Control MethodsDC-AC
    Load Current10A 15A 20A 25A 40A 50A 60A 75A 80A
    Load Voltage24~380VAC
    Input Control Methods3~32VDC
    Control CurrentDC:3~25mA
    On Voltage≤1.5VAC
    Off Leakage Current≤2mA
    On-off Time≤10ms
    Dielectric Strength2500VAC
    Insulation Resistance500M /500VDC
    Ambient Temperature-30℃~+75℃
    Mounting MethodsBolt fixed
    Work InstructionsLED
    Weight90g(10A、15A)
