      >   PRODUCT   >   Power Relay

    JQX-62F-1Z(80A)

    Inquire Now

    ● 40A-80A Contact Change-over Capacity

    ● Installation and Use of Screw

    ● With Opening and Dust-proof Type




    PRODUCT DETAILS

    • Specifications
    • Technical Data

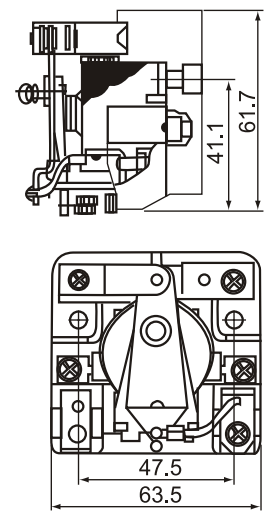

    • Dimensions
    • Wiring

    Contact Ratings

    Contact Ratings1Z, 1H, 1D
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity80A/30VDC 250VAC


    Specification

    Insulation Resistance1000M Ω(500VDC)
    Dielectric StrengthBCC≥2500VAC 1min
    BOC≥1200VAC 1min
    Operate Time25ms/25ms


    CoilRated VoltageDC6-220V
    AC6-380V
    Rated PowerDC≤3W
    AC≤5VA
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-40℃~40℃
    Weight≤210g
    Mounting MethodsScrew Mounting
