    HH64P(LY4)

    Inquire Now

    ● Various Relays, including LED and High Capacity

    ● With 2Z, 3Z, 4Z Contact Forms

    ● With Various Terminal Types

    ● Gilt Contact Type

    ● Dust-Proof Cover, Various Mounting Types

    ● Various Sockets Available



    PRODUCT DETAILS

    • Specifications
    • Technical Data
    • Dimensions

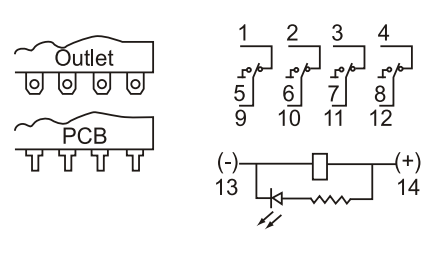

    • Wiring

    Contact Ratings

    Contact Ratings4Z
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity10A/250VAC 30VDC


    Specification

    Insulation Resistance500MΩ (500VDC)
    Dielectric StrengthBCC≥1500VAC 1min
    BOC≥1000VAC 1min
    COC≥1500VAC 1min
    Operate Time25ms/15ms


    CoilRated VoltageDC6-220V
    AC6-380V
    Rated PowerDC≤1.5W
    AC≤2.5VA
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-25℃~55℃
    Weight≤69g
    Mounting MethodsPrinted-circuit Board, Flange,Outlet
