    YX190

    Inquire Now

    Can be directly connected, with small size,  low power consumption, big operating temperature range,anti-interference ability  and so on. There are functions such as  adjust the time and countdown.



    PRODUCT DETAILS

    • Specifications
    • Technical Data

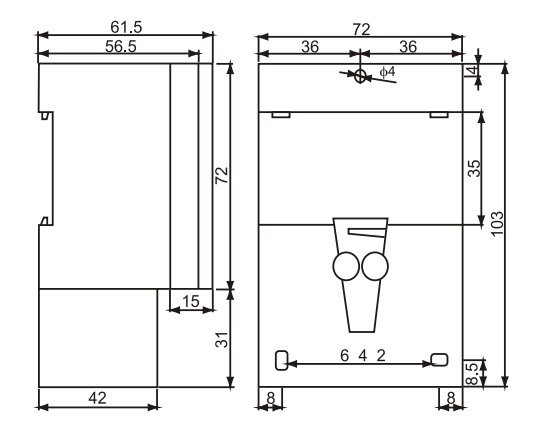

    • Dimensions
    • Wiring
    Rated VoltageAC24V/240V 50/60Hz
    Resistive Load Switching Capacity16A
    ContactSPDT
    Power Consumption＜2VA
    DisplayLCD
    Switching Frequency16 ON & 16 OFF
    Min. Switching Time1MIN
    Timing Range1MIN~168HOUR
    Timing Error＜±0.5s/d
    Electrical Life105 (Rated Load)
    Mechanical Life107
    Ambient Temperature-20℃~80℃
    Relative Humidity＜95%RH
