    YX841

    Inquire Now

    PDF


    A Series  Over/Under-current Monitoring Relay

    When the working current suddenly increases  or decreases due to various faults of load,  protective measures must be taken, otherwise  serious safety accidents are likely to occur.  When the fault current reaches the set value  of the protector, the contact of the current relay  is closed after a pre-set delay, and the signal  alarm device is activated.



    PRODUCT DETAILS

    • Specifications
    • Technical Data
    • Dimensions
    • Wiring

    Model Naming Rules

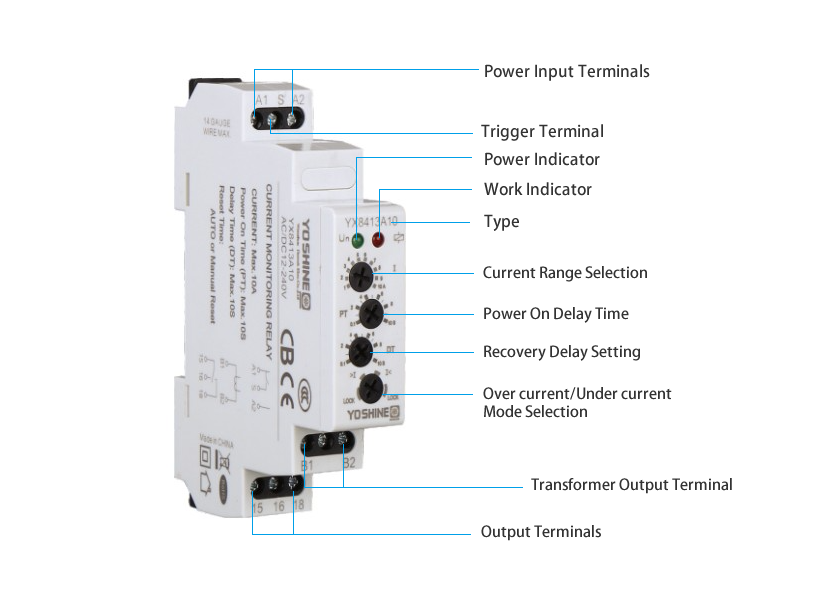

    Front view: function selector and regulators


    A Series Action Chart

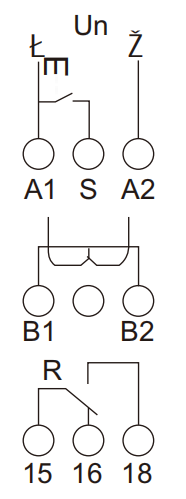

    A Series Wiring Diagram



    TypeCurrent specification
    YX8413A**1A/2A/5A/10A/16A
    YX8433A**


    Output Features
    Output Features SPDT
    Contact Material Silver Alloy
    Minimum Switching Power 500mW
    Indicator Light Red Light
    Input Features
    Voltage Range12-240VAC/DC
    Range of Error0.25A
    Max Power Consumption3VA(AC)
    1.7W(DC)
    Indicator Light Green Light
    Performance Features
    Protection Delay Range Max.10S
    Power On Time Delay RangeMax.10S
    Electrical Life 105
    Mechanical Life 107
    Dielectric strengthbetween input and contacts2500VAC
    between contacts 1000VAC
    Terminal Wire Capacity 14AWG(2.1mm2 )
    Torque of Terminal 7.1 Ibf in (0.8Nm)
    Environment
    Environment TemperatureStorage-30℃~ +70℃
    Working-20℃~ +55℃
    Weight65g
