    Floatless Level Switch

    Floatless level switch is a kind of switch that controls  the height of the liquid level in the container. It uses  the conductivity of the liquid to turn on or off the  contact output when the liquid level reaches a  certain height, and automatically monitor run or  stop of the water pump to achieve the purpose of  controlling the amount of liquid in the container.


    Application

    It is generally used in homes, industries,  commercial places, public places and other places  where automatic monitoring of water supply and  drainage systems is required. It has small size and complete specification.

    It can be widely used in domestic water systems, sewage treatment systems, and special liquid supply systems.



    PRODUCT DETAILS

    • Specifications
    • Technical Data
    • Dimensions
    • Wiring

    Model Naming Rules



    Function Parameters

    TypeSensitivityApplicable Environment
    YX6312Sensitivity Adjustable:5K-100KUsed for domestic water systems, sewage treatment systems and special liquid supply systems.
    Delay Time Adjustable :0.5-10S

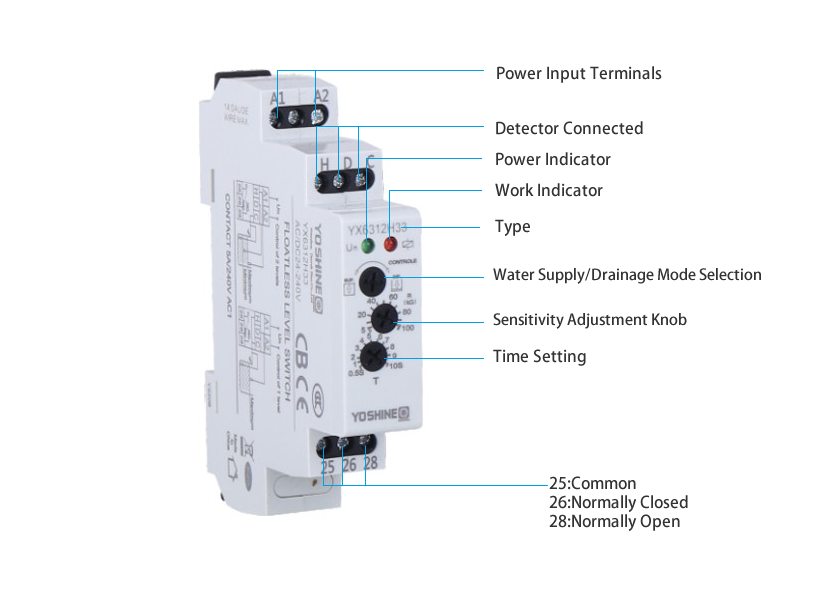

    Front view: function selector and regulators

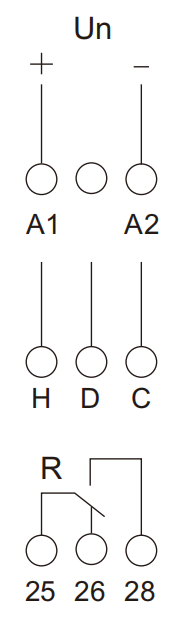

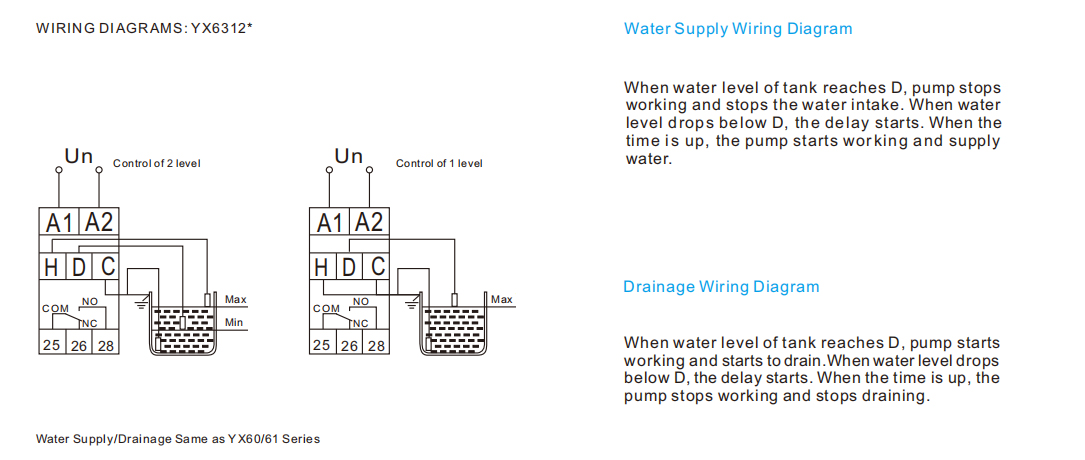

    Wiring Diagram



    Technical Data YX6312
    Output Characteristics SPDT
    Rated Current 5A
    Working VoltageAC/DC24-240V
    Applicable Environment Used for domestic water systems, sewage treatment systems and special liquid supply systems.
