YX6012/YX6112

YX6012/YX6112

Floatless Level Switch

Floatless level switch is a kind of switch that controls the height of the liquid level in the container. It uses the conductivity of the liquid to turn on or off the contact output when the liquid level reaches a certain height, and automatically monitor run or stop of the water pump to achieve the purpose of controlling the amount of liquid in the container.

Application

It is generally used in homes, industries, commercial places, public places and other places where automatic monitoring of water supply and drainage systems is required. It has small size and complete specification.

It can be widely used in domestic water systems, sewage treatment systems, and special liquid supply systems.

PRODUCT DETAILS

Specifications
Technical Data

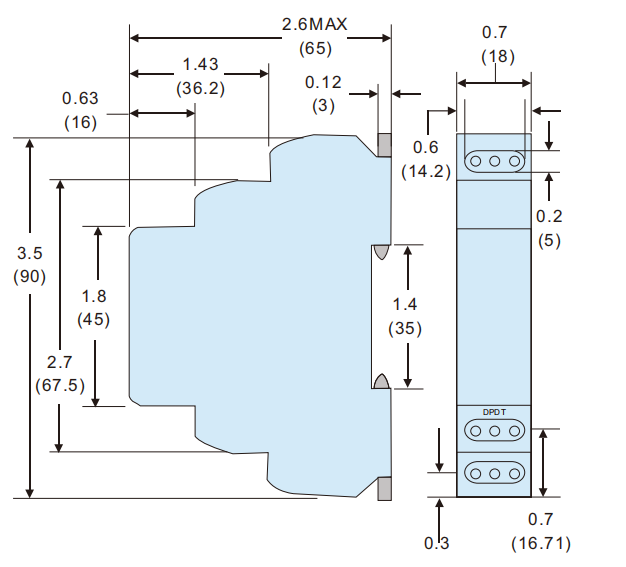

Dimensions
Wiring

Model Naming Rules

Function Parameters

Type	Sensitivity	Applicable Environment
YX6012	Medium Sensitivity, Fixed	Used for normal purifed water and sewage.
YX6112	Medium Sensitivity, Adjustable	Used for normal purifed water and sewage.

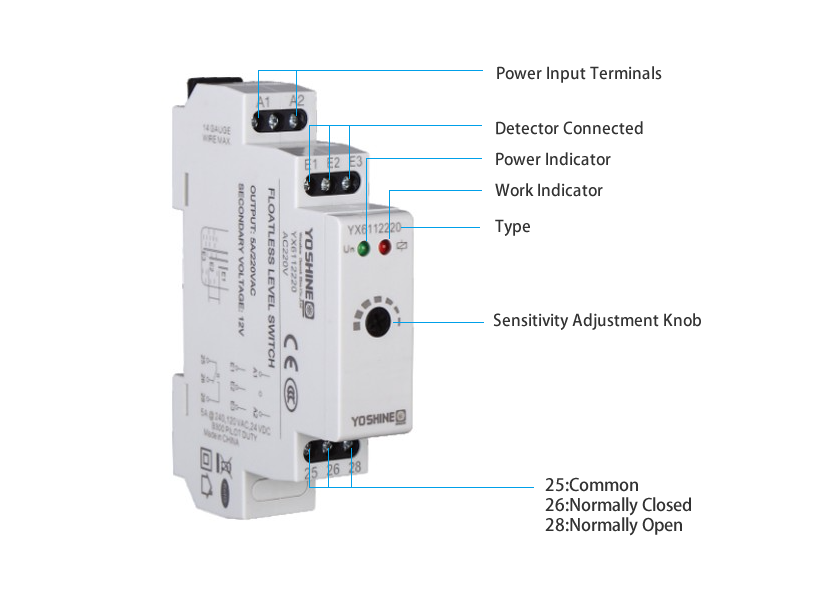

Front view: function selector and regulators

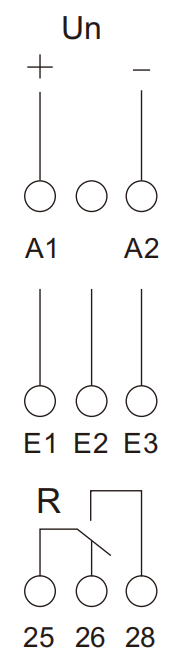

Wiring Diagram

Technical Data	YX6012	YX6112
Output Characteristics	SPDT	SPDT
Rated Current	5A	5A
Working Voltage	AC110V,AC220V
Applicable Environment	Used for normal purifed water and sewage.
