YX6008/YX6108

YX6008/YX6108

Floatless Level Switch

Floatless level switch is a kind of switch that controls the height of the liquid level in the container. It uses the conductivity of the liquid to turn on or off the contact output when the liquid level reaches a certain height, and automatically monitor run or stop of the water pump to achieve the purpose of controlling the amount of liquid in the container.

Application

It is generally used in homes, industries, commercial places, public places and other places where automatic monitoring of water supply and drainage systems is required. It has small size and complete specification.

It can be widely used in domestic water systems, sewage treatment systems, and special liquid supply systems.

PRODUCT DETAILS

Specifications
Technical Data
Dimensions
Wiring

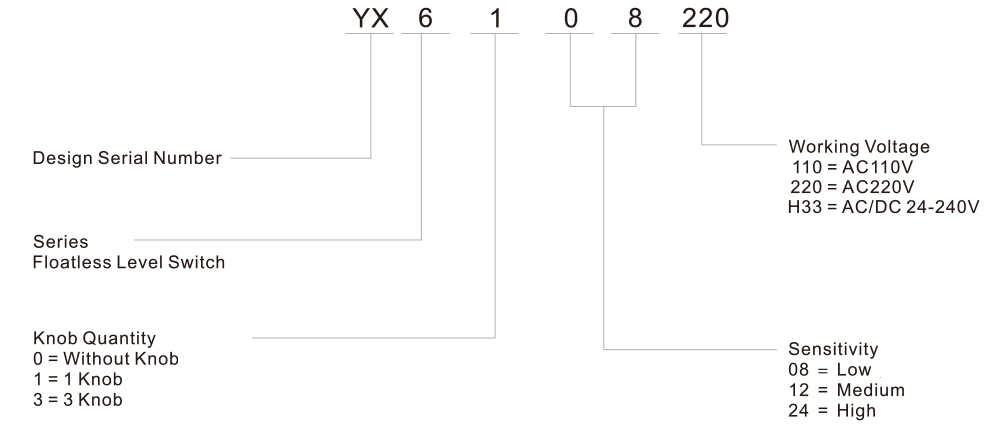

Model Naming Rules

Function Parameters

Type	Sensitivity	Applicable Environment
YX6008	Low Sensitivity, Fixed	Used for liquid with low intrinsic resistance,such as salt water,sewage and Acid-baseliquid medicine.
YX6108	Low Sensitivity, Adjustable

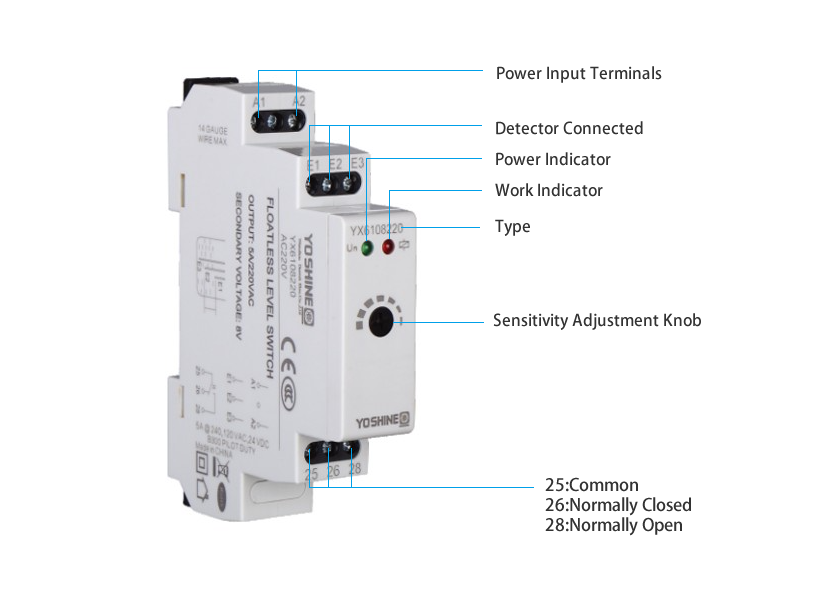

Front view: function selector and regulators

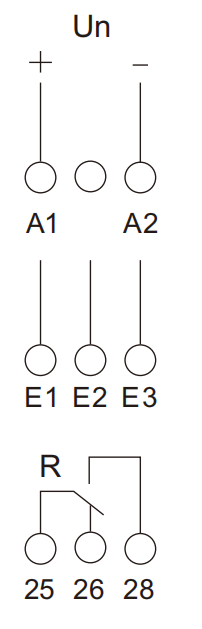

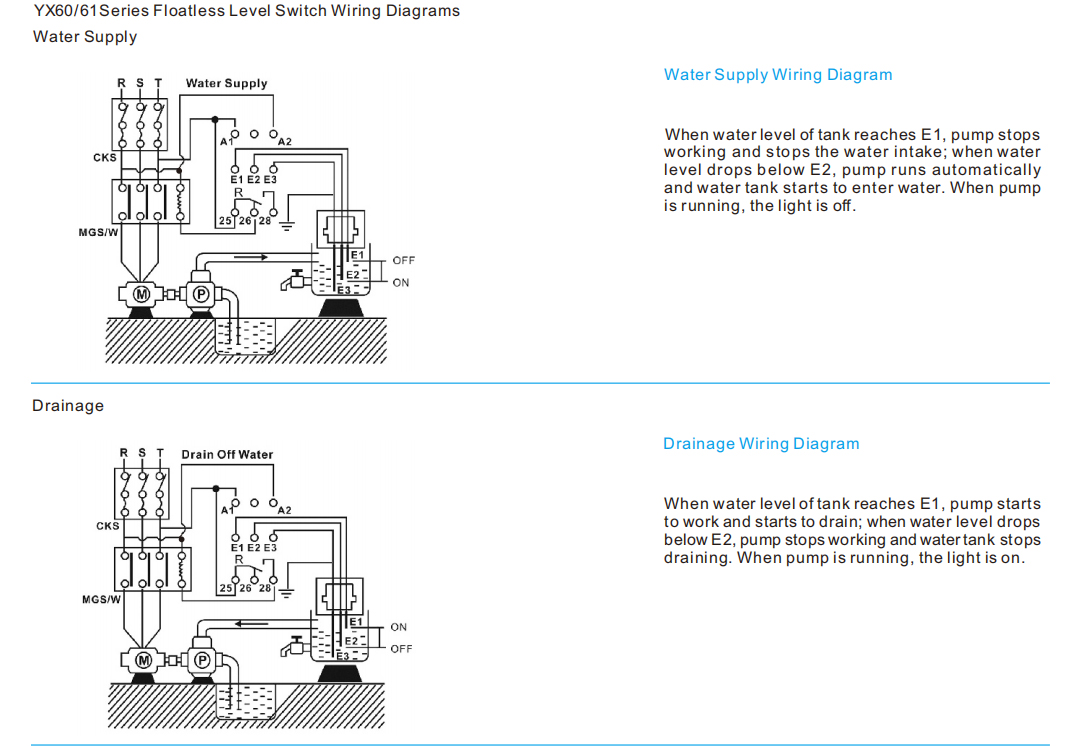

Wiring Diagram

Technical Data	YX6008	YX6108
Output Characteristics	SPDT	SPDT
Rated Current	5A	5A
Working Voltage	AC110V,AC220V
Applicable Environment	Used for liquid with low intrinsic resistance,such as salt water, sewage and Acid-baseliquid medicine.
