      >   PRODUCT   >   YX5 Series Trigger Time Relay

    YX5260/YX5261

    Inquire Now

    PDF


    Trigger Time Relay

    Time relay is an automatic control unit, that can be  combined with various other electrical equipment  to achieve automatic control of the operating  circuit. After a preset time expires,t he contact  output will be closed or opened, which will enable  the terminal electrical equipment to automatically  run or stop.

    This series of time relay has the advantages of wide  operating voltage range, clear working instructions,  small volume, uniform size, easy installation, etc.


    Application

    Industrial machinery

    Illumination

    Manufacturing

    HVAC system

    Food and agriculture



    PRODUCT DETAILS

    • Specifications
    • Technical Data
    • Dimensions
    • Wiring

    Model Naming Rules


    Front view: function selector and regulators



    Wiring Diagram


    Technical Data YX5260YX5261

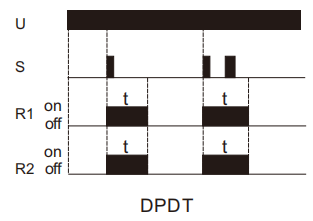

    Output Characteristics Single-period DPDT Output
    Rated Current 5A/16A
    Working VoltageSingle Voltage : AC12V,AC24V,AC110V,AC220V,DC12V,DC24V
    Wide Voltage : AC/DC12-240V
    Time Range1S,3S,6S,10S,30S,60S,3M,6M,10M,30M,60M,3H,6H,10H,30H
    Customized according to clients' requirements
    Functions image.pngimage.png
