      >   PRODUCT   >   YX5 Series Time Relay without trigger

    YX5211/YX5221

    Inquire Now

    PDF


    Time Relay

    Time relay is an automatic control unit, which  can be combined with various other electrical  equipment to realize automatic control of the  running circuit. When a preset time is over, the  contact output will be closed or opened, so that  the terminal electrical equipment can run or stop  automatically.

    This series of time relay has the advantages of wide operating voltage range, clear working instructions, small volume, uniform size, easy installation, etc.


    Application

    Industrial machinery

    Illumination

    Manufacturing

    HVAC system

    Food and agriculture



    PRODUCT DETAILS

    • Specifications
    • Technical Data

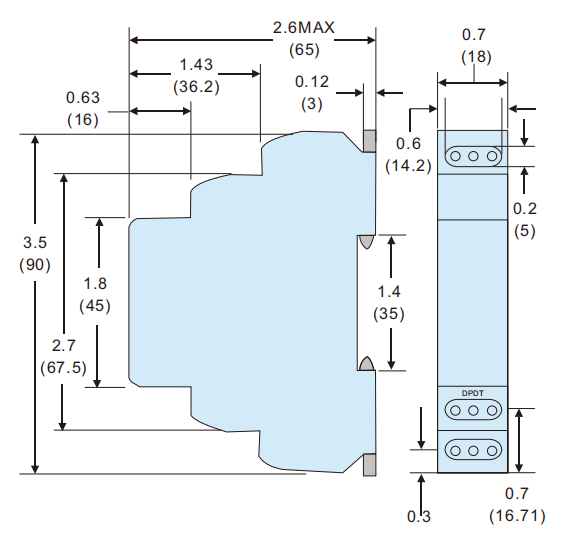

    • Dimensions
    • Wiring

    Model Naming Rules


    Front view: function selector and regulators



    Wiring Diagram


    Technical Data YX5211YX5221
    Output CharacteristicsMulti-period SPDT Output,Off delayMulti-period DPDT output,Off delay
    Rated Current5A/16A
    FunctionsSingle Voltage : AC12V,AC24V,AC110V,AC220V,DC12V,DC24V
    Wide Voltage : AC/DC12-240V
    Time Range0.1S~10D
    Working Voltageimage.pngimage.png
