Suitable for installation on 35mm rail (in accordance with EN 60715 standard)
Lighting or lighting control system.
Model Naming Rules
Specifications
| Supply System Type | Light Activated Switch |
| Power Indicator (Green LED) | • |
| Rated Current | 16A |
| Work Indicator (Red LED) | • |
| Output Characteristics | SPDT |
| Working Voltage (AC12V or DC12V) | - |
| Working Voltage (AC24V or DC24V) | - |
| Working Voltage (AC110V) | • |
| Working Voltage (AC220V) | • |
| Working Voltage (AC/DC12V~240V) | - |
| Step Sequence | - |
Front view: function selector and regulators
YX3110 Optical Sensor Dimensions

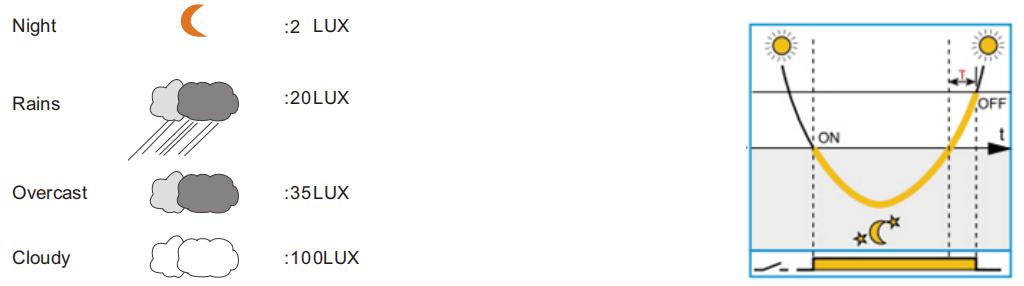

YX3110 Working Diagram
YX3110 Working Wiring Diagram (SPDT)
| Technical Data | YX3110 |
| 2300W | Incandescent Lamp 230V |
| 2300W | Halogen Lamp 230V |
| 2300VA | Fluorescent Tube |
8×40W(4.7 u F)
6×58W(7 u F)
2×100W(18 u F) | Parallel Compensated Fluorescent Tube,Max. 400W(42uF) |
| 12×7W,8×11W,4×20W | Compact Fluorescent Lamp(CFL),Max.90W |
| 1000VA | Non-corrected Mercury Vapour Lamp |
| 400VA(42 u F) | Parallel-corrected Mercury Vapour Lamp |
| 1000VA | Non-corrected Sodium Vapour Lamp |
| 400VA(42 u F) | Parallel-corrected Sodium Vapour Lamp |
| 20W | LED Up to 2W |
| 55W | LED Between 2W and 8W |
| Output Characteristics | SPDT |
| Contact Load Output | 16A/250VAC |
| Working Voltage | Single Voltage:AC110V,AC220V |
