The product cooperates with the correspondingAPP to realize the following functions:
Support Smart Config for fast networking
support multiple control types: switch, timing start and stop,cycle control, etc.
Support wLAN local control and remote control
Access to mainstream voice assistants such as Tmall Genie.DuerOS, Xiao Ai (Xiao Mi),Alexa,Google, etc., voice controllntranet device sharing and cloud account device sharingfunction
APPsupports Android and ios systems
Application:
Home control system
Building automation
lndustrial control system
lndustrial automation
Mechanical and electrical equipment
Model Naming Rules

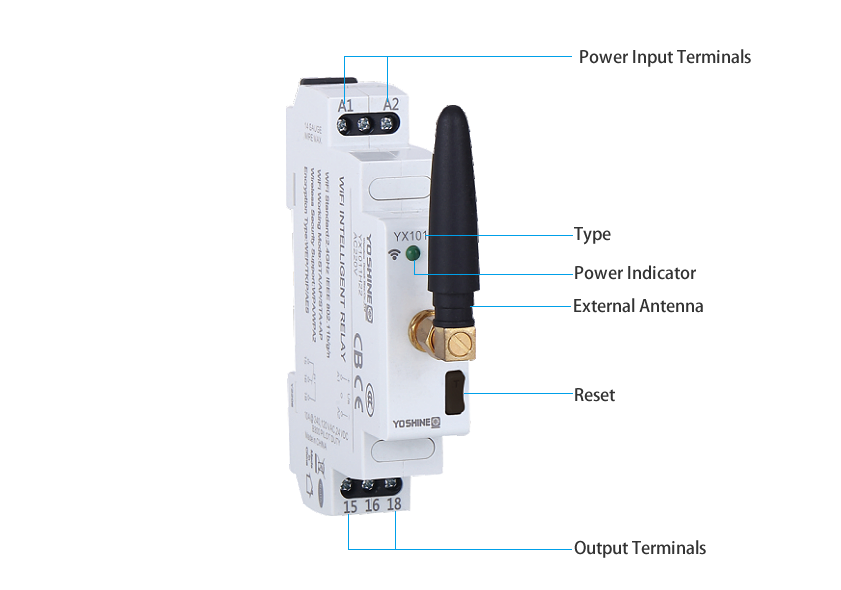

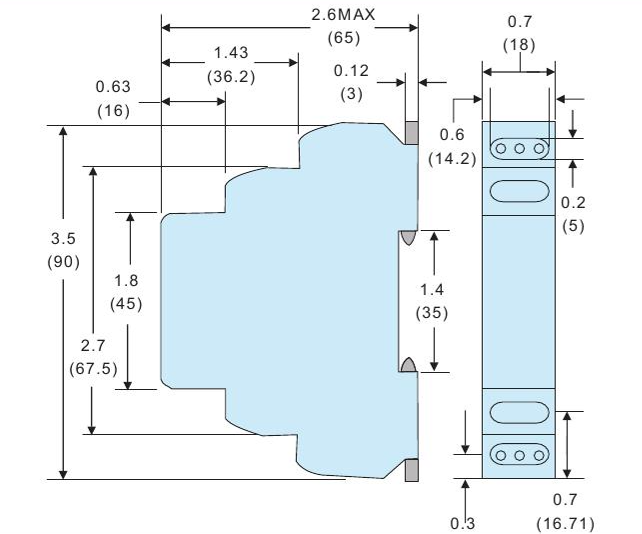

Front view: function selector and regulators
Structure Block Diagram of Intelligent Control System

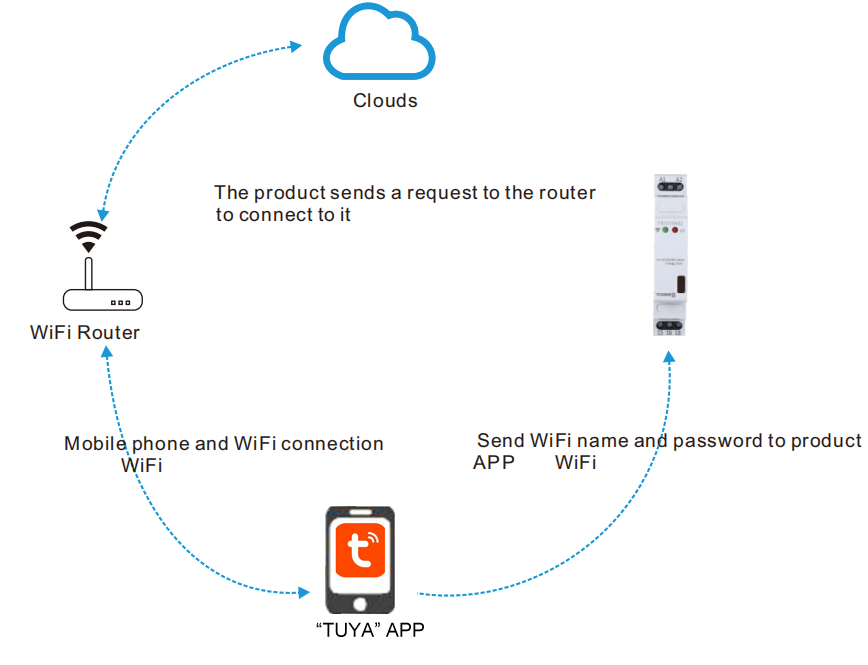

Distribution Network Block Diagram of Standard Configuration
| WiFi Characteristic | Standard | IEEE 802.11b/g/n |
| Working Mode | STA/AP/STA+AP |
| Wireless Security Support | WPA/WPA2 |
| Encryption Type | WEP/TKIP/AES |
WiFi RF
Parameters
(Typical
Values)
WiFi | Working Frequency | 2.4GHz-2.5GHz (2400M-2483.5M) |
| Transmit Power | 802.11b (CCK) : 19+/-1dBm |
| 802.11g (OFDM): 14+/-1dBm |
| 802.11n(HT20@MCS7): 13+/-1dBm |
| Wireless Transmission Distance | General Indoor: 45M, Outdoor: 150M (Note: It depends on the environment.) |
| Standby Power Consumption | Less than 0.5W 0.5W |
Working
Condition | Working Temperature | -10ºC-60ºC |
| Storage Temperature | Normal Temperature |
| Working Humidity | 5%-95% (Non-condensing) |
Physical
Parameter | Antenna Type | Built-in Antenna |
| External Antenna |
| Rated Current | 10A |
| Control Method /Working Mode | No WiFi Control |
| APP Local Control | Yes |
| APP Remote Control | N/A |
| Alexa/Google Home/Tmall Genie/DuerOS/Xiao Ai (Xiao Mi) Voice platform Support | N/A |
| SCCP Control | Yes |
Wiring Diagrams
Product Wiring Diagram
